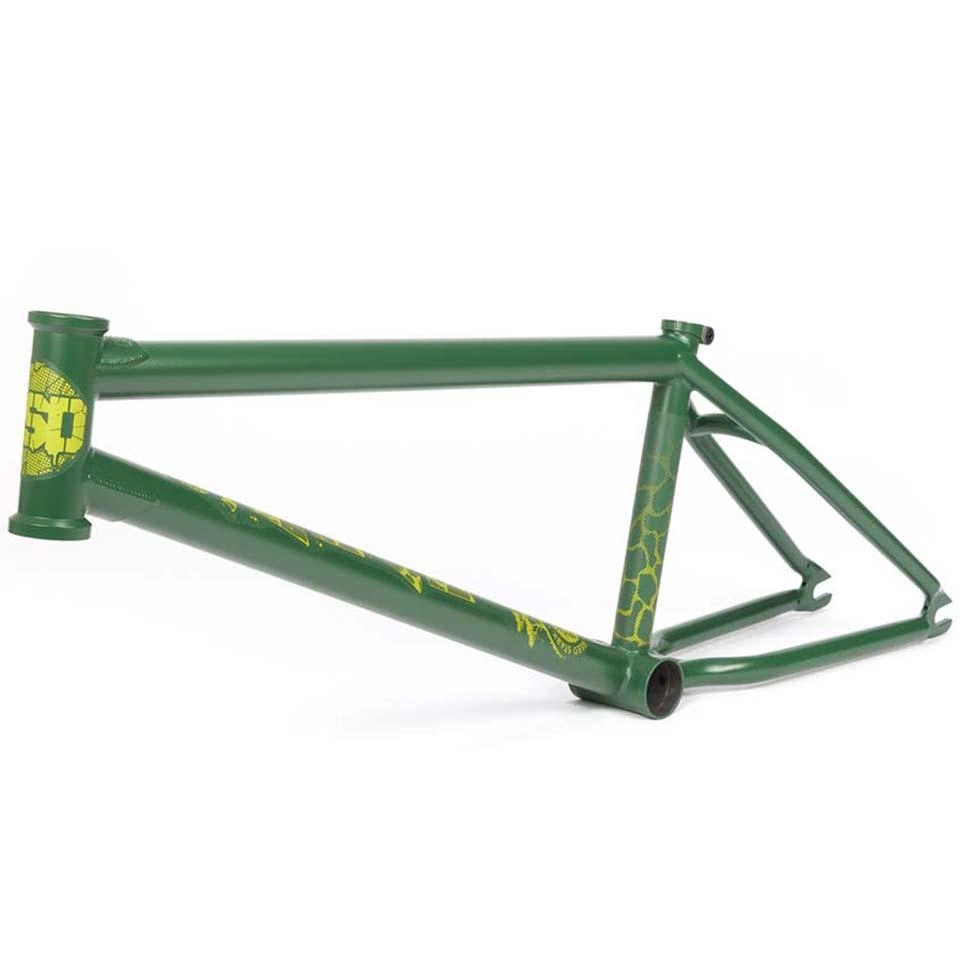

Reed Stark signature Safari frame from BSD. The Safari frame is a tall frame with a big standover and because of this it also has a taller headtube to keep the frame angles looking nice. The taller headtube distributes stress at the front of the frame over a larger area and also means you can run your stem and forks with no headset spacers for a cleaner look up front.

On a frame the highest concentration of stress is at the junctions between the headtube/toptube and headtube/downtube. To handle the pressures of modern riding, the required strength is achieved by beefing this area up using a combination of butted tubing and external gussets, making it built for urban adventure wherever your street safari takes you…

###section###

Product Specs

1. MATERIAL: 4130 Chromoly
2. HEAD TUBE ANGLE: 75°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 13"
5. BB HEIGHT: 11.75"
6. WHEEL SIZE: 20"
7. STANDOVER HEIGHT: 9.5"
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Integrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Brakeless
12. GYRO TABS: Brakeless
13. WEIGHT: 5.3 lbs

###section###

Product Highlights

• Neutral Geometry for responsiveness and stability
• Best suited to Street and Park riding
• High-quality Chromoly construction
• Gusseted tubing for added strength
• Strong and durable investment cast dropouts
